Purchase Notes
Please Note That Our 100 Watt Flexible Solar Panel Product is being upgraded.
Model:RGN33-100
Product Size: 970x530mm
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.18V
Maximum Power Current (Imp):5.50A
Open-Circuit Voltage (Voc): 21.8V
Short-Circuit Current (Isc):5.83A
REMOTE AREA
the zip code in Spain that starts with 35, 38, 51, 52.the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
For local express company,above zone are remote area,that means there is no shipping service.Please not place order with above address,thanks.
CUSTOMS FEE
If you are United Kingdom/Switerland customer,the parcel may be charged Customs Duty/Import VAT/Clearance Fee by local border crossing inspection institution，no matter ship from Europe or China.Please notice.
Feature
Easy to use:

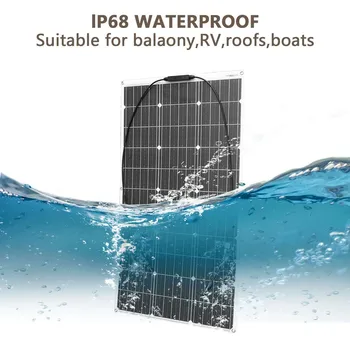

This product is a semi-flexible solar panelthat can be bent up to 30 degrees. It is suitable for mounted on an irregular smooth surfaces such as RV roofs, boats, tents, Yacht, vaulted roofs, etc.
High efficiency, Light weight:
Only 2.5mm thick, weight 1.7kg, easy to hang, disassemble and carry.
Easy to install:

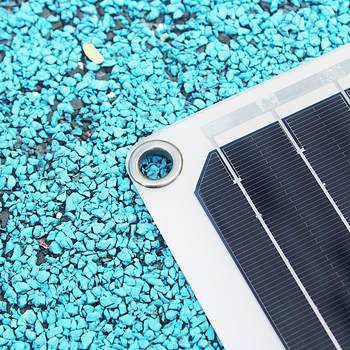

Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.

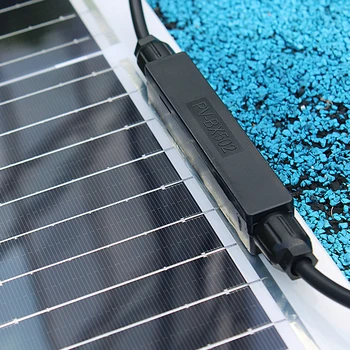

The junction box in front of the solar panel has a Schottky diode built in to prevent reverse current.
The solar panel operates at 18V. Please purchase a solar controller to charge the battery.
Packing List
100W solar panel packing listing:
1* 100W flexible solar panel
200W solar panel packing listing:
2* 100W flexible solar panel
300W solar panel packing listing:
3* 100W flexible solar panel
400W solar panel packing listing:
4* 100W flexible solar panel
500W solar panel packing listing:
5* 100W flexible solar panel
Specification
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.18V
Maximum Power Current (Imp): 5.5A
Open-Circuit Voltage (Voc): 21.8V
Short-Circuit Current (Isc)5.83A
Maximum System Voltage: DC700V
Weight: 1.7KG
Dimensions: 970*530*2.5mm
| Weight | 15.000 kg |
|---|---|
| Dimensions | 105 × 55 × 13 cm |
| Number of Panels | 1 |
| Flexible Solar Panel | Yes |
| Foldable Solar Panel | No |
| Hign-concerned Chemical | none |
| Type | Solar Panel |
| Module Efficien | 21.8% |
| Model Number | RGN33-100A |
| Size | 970x530mm |
| Nominal Capacity | 100 Watt |
| Number of Cells | 33 PCS |
| Max. Power | 100w 200w 300w |
| is_customized | Yes |
| Certification | CE, RoHS |
| Maximum peak power | 100 watt |
| Voltage at max. peak power | 18.0V |
| Current at max. peak power | 5.55A |
| Open circuit voltage | 21.80V |
| Short circuit current | 5.85A |
| Quality Guarantee Period | 1 year |
Be the first to review “Flexible Solar Panel 100w 200w 300w 400w 500w 600w 1000w for Camping RV Boat Car Home 12V 24V Battery Charger”
